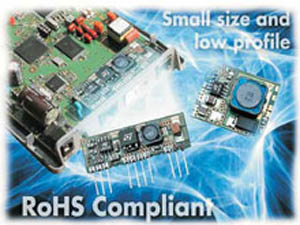

STMicroelectronics presents GS-R12/24 flexible low cost DC-DC converter modules for high volume applications

The GS-R12 and GS-R24 DC-DC converter modules provide a wide range of non-isolated 2 Amp current standard solutions for power systems. The products are grouped into two families depending on the input VDC value, namely the GS-R12 for 12 VDC input and GS-R24 for 24 VDC input.

Both families provide solutions for THT and SMT board assembly technologies. The SMT solutions are available with 2 different aspect ratio footprints.

Each solution is identified by the specific part number, and datasheets provide system designers with all the necessary data, including electrical characteristics, mechanical data, footprints and pin layouts.

GS-R12 and GS-R24 DC-DC converters share a number of key features and provide a solution for 1.8, 2.5, 3.3 and 5.0 output voltages.

Key features include thermal shutdown, synchronization function and remote logic inhibit/enable.

Each product family also includes a flexible programmable solution so that designers can select the output voltage value just by connecting a resistor between two pins. The device also includes the HDP switch and has convenient pin-out for flow-through PCB.

For more information on the full range of STMicroelectronics products available from Anglia please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main STMicroelectronics section where you can view other news articles and product data.
