X2 film capacitors from EPCOS now go up to 45 μF

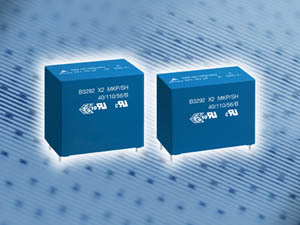

With its new B3292*E/F series EPCOS now offers X2 safety class capacitors with capacitances up to 45 μF. The components were developed for across-the-line applications at 305 V AC and 110 ºC, and are approved to IEC 60384-14, UL1283 and CSA 22.2 No. 8.

The B3292*E/F series makes it possible to design EMI filters with a single 45-μF capacitor. This results in a significant reduction in the PCB surface occupied as well as the parasitic inductance. Improved noise suppression is achieved in the upper frequency range due to the higher resonant frequencies. Moreover, the reduction of soldering points simplifies testing and improves the reliability of the entire filter.

Owing to their large capacitance values the B3292*E/F series is especially suited for filtering applications that require the suppression of high harmonic frequencies. This is the case, for example, in the active front-end topologies of power converters.

For more information on the full range of EPCOS products available from Anglia please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main EPCOS section where you can view other news articles and product data.
