Bulgin introduce C19 and C20 high power mains connectors

Bulgin has introduced a range of high power mains connectors for applications up to 20A, 250V ac. IEC60320 sheet C19 and C20, is the internationally recognised higher current mains interface.

Rated at 20A, 250V ac in North America and 16A, 250V ac Europe, the connectors are moulded in a flame retardant UL94V-0 rated Nylon, incorporating solid brass contact pins. Operating temperature is from -40 to +70˚C.

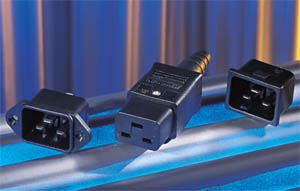

The C19, PX0599, re-wireable female cable connector has screw termination and is suitable for 3 x 12AWG or 3 x 2.5mm2 harmonised cables up to 12mm diameter. The cable protection sleeve is tapered so can be trimmed to suit different cable diameters.

The C20 panel mounted inlet is available in two versions; flange mounting, PX0596, for screw fixing and snap to panel, PX0598, suitable for 1.0, 1.5, 2.0, 3.0mm panels. Both types have either 4.8mm or 6.3mm spade terminations.

To complement these connectors is a retaining clip, to ensure a secure vibration proof connection and an insulation boot to cover the rear of the panel inlet to eliminate the potential of accidental shock.

Designed to meet UL, CSA, VDE and IMQ safety standards, the connectors will find many applications within power distribution and higher power equipment and appliances.

For more information on the full range of Bulgin products available from Anglia please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main Bulgin section where you can view other news articles and product data.
