Microchip Technology announces 1.5A MOSFET drivers in SOT-23 package

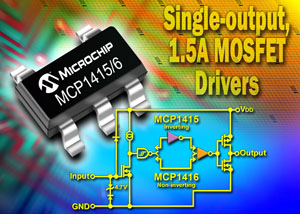

Microchip has announced the MCP1415 and MCP1416 (MCP141X) single-output MOSFET drivers. The inverting MCP1415 and non-inverting MCP1416 MOSFET drivers are rated for a peak output current of 1.5A, over a wide operating voltage range of 4.5V – 18V. Both devices have excellent latch-up immunity and are available in a miniature 5-pin SOT-23 package.
Key Facts:
• Provide robustness and latch-up immunity for modern switching applications
• MOSFET driver family expands into the high output current, small package segment
• Small package helps minimise gate bounce caused by PCB parasitics

Because of their small package size, designers can position the MCP141X MOSFET gate driver close to the MOSFET’s physical gate connection, which minimises gate bounce caused by the parasitic PCB layout. This also minimises gate rise-and-fall times, propagation-delay times and shoot-through current, all of which help to increase system efficiency and reduce power dissipation.

The MCP141X MOSFET drivers are well-suited for a variety of consumer electronic, industrial and medical applications that use power supplies. Examples include personal computers (PCs), laptops, portable measurement devices and centrifuges, among others. Samples are available today at http://sample.microchip.com, and volume production orders can be placed today at www.microchipdirect.com.

For more information on the full range of Microchip products available from Anglia please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main Microchip section where you can view other news articles and product data.

back to product news

Bookmark with: info?
Show more Expand/Collapse




This news article was originally published in July 2009.
