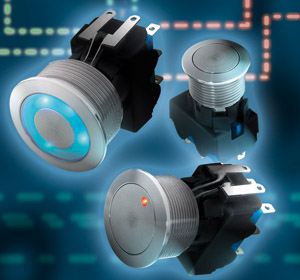

Schurter's MSM double pole metal line switch is highly robust

Schurter’s MSM metal switch series has been extended to include a version with a double pole contact system. The new MSM DP switch is designed with two separate switching contacts. The separate contacts can be used as normally open, normally closed or as change-over. The MSM DP is ideal for potential free momentary switching action of electrical equipment.

Furthermore, the switch can be used in applications where an additional second contact is required for a safety circuit. Typical applications are emergency switches where the control loop is switched, and in addition a second circuit for emergency services is activated.

Due to its flat front construction of 1.7 mm, a protection class of IP67 and a high shock resistance, the switch is extremely robust against vandalism. The MSM DP is available in mounting dimensions 19, 22 and 30 mm. The standard type is designed with switching capacities up to 3A / 250 VAC and 5A / 125 VAC respectively. For applications having other switching capacities, alternative variants are available on request. For night applications or where optical status indications are desired, point and ring illuminated versions in different colours are available.

For more information, or details on the full range of SCHURTER products available from Anglia, please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main SCHURTER section where you can view other news articles and product data.

back to product news

Bookmark with: info?

Delicious Digg Reddit Facebook StumbleUpon

Google Newsvine Yahoo

Show more

This news article was originally published in September 2008.
