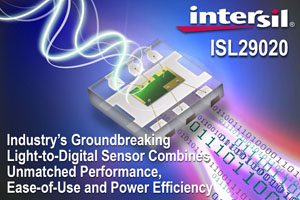

Industry’s groundbreaking light-to-digital sensor combines unmatched performance, ease-of-use and power efficiency

The ISL29020 delivers unmatched performance by combining low-light sensitivity (<0.015 lux), wide dynamic range, best-in-class spectral response as well as best-in-class IR and UV rejection. The ISL29020 is also leads the industry in power efficiency among light-to-digital sensors, using <65 microamps max operating current.

The ISL29020’s I2C output and interface provides both ease-of-use and enhanced functionality. The digital output is a very simple code directly proportional to lux and requires no complex algorithms.

The ISL29020 also has four selectable ranges of light sensitivity, with sensitivity as low as 0.015 lux to as high as 64,000 lux enabling accurate light sensing in low-light conditions as well as direct sunlight. The ISL29020’s low-light sensitivity, combined with the device’s tiny, translucent six-lead ODFN package, allows the sensor to be embedded in applications behind screens of tinted glass and some fabrics and still perform effectively.

In addition to being the industry’s most power efficient light-to-digital sensor, the ISL29020 also features a 0.5 microamps shutdown current and features software and automatic shutdown.

The ISL29020 is an ideal ambient light sensing solution for smart phones, GPS devices, LCD TVs, portable computing devices and automotive infotainment and display applications.

For more information, or details on the full range of Intersil products available from Anglia, please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main Intersil section where you can view other news articles and product data.
