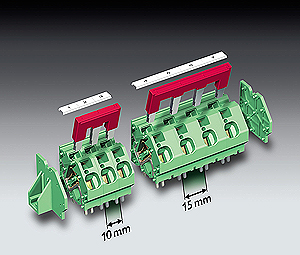

High performance PCB terminal with spring-cage connection from Phoenix Contact

With the ZFKDS 10 spring-cage PCB terminal, the amount of wiring required in performance electronics is dramatically reduced. Wire diameters of up to 16 mm2 can be connected, while currents of up to 57A can be carried safely to the PCB.

Even with a pitch size of 15 mm, the PCB terminal delivers unrestricted UL approval to 600 V. There are insulated bridges with different numbers of pins to loop through the potentials.

Integrated test sockets facilitate the convenient use of test plugs. The PCB terminal can also be screwed into the device using the lateral fixing flange. The terminal point is identified professionally using clip-on labels, self-adhesive strips or direct printing.

For more information, or details on the full range of Phoenix Contact products available from Anglia please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main Phoenix Contact section where you can view other news articles and product data.
