Diodes’ high sensitivity Hall-effect latch sensor for BLDC fan and motor commutations

Diodes Incorporated has announced the AH3761, a high sensitivity CMOS Hall-effect latch sensor, which has been designed for single-phase brushless DC (BLDC) fans and motor commutation applications.

The AH3761 has an integrated band-gap voltage regulator, Hall-voltage transducer, amplifier, chopper stabilization, Schmitt trigger and open-drain output.

With a wide operating voltage and temperature range, AH3761 is a small versatile Hall-effect latch device that turns on with south magnetic field of sufficient strength and turns off with north magnetic field of sufficient strength. It retains the output state when magnetic field is removed.

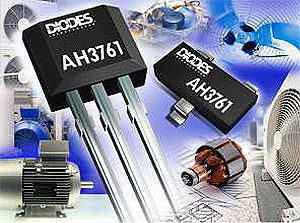

The AH3761 is available in SC59 and SIP3 packages.

To view the datasheet, click on the following link:
http://www.diodes.com/datasheets/AH3761.pdf

For more information on the full range of Diodes Inc. products available from Anglia please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main Diodes Inc. section where you can view other news articles and product data.
