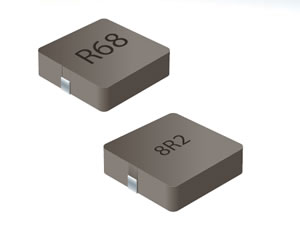

Bourns releases new high current power inductors models SRP4020 and SRP7030F
 |
Bourns® has introduced two new high current power inductor models that are designed with flat wire and a magnetic alloy compound molded construction. While the design makes them uniquely compact, they also feature low DC resistance, high current carrying capability and they are magnetically shielded. |
These inductors are ideally suited for use in DC/DC converters for mobile electronic devices and computers, as well as data storage and voltage regulator modules.
Model SRP4020 has a 4.8 x 4 mm footprint in a 2 mm height with an inductance range of 0.22 – 2.2 μH, a heat rating current up to 10 A and a saturation current up to 15 A.
Model SRP7030F has a 7.6 x 6.5 mm footprint in a 3.2 mm height with an inductance range of 0.1 – 10 μH, a heat rating current up to 32 A and a saturation current up to 60 A.
For more information, or details on the full range of Bourns products available from Anglia, please call +44 (0)1945 474747 or email info@anglia.com
|
||
