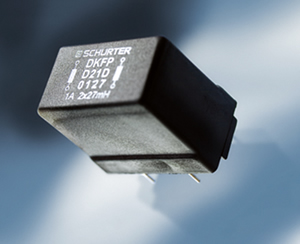

SCHURTER has extended its range of DKFP current compensated chokes and offers now rated currents from 300 mA to 10A



The chokes are designed for temperatures of between -40 °C and 125 °C. The chokes are available in vertical or horizontal versions. The DKFP current compensated chokes are highly effective in suppressing common-mode interference.

The DKFP current compensated chokes may be used in line filter circuits, frequency converters, switch-mode power supplies and solar converters.

The DKFP chokes series cover now inductance values from 1 mH to 100 mH. The rated voltage of the DKFP compensated chokes is 250 VAC.

Technical Features:

  • Rated Voltage 250 V AC
  • Rated Current 300 mA to 10 A
  • Rated inductance 1 mH to 100 mH
  • Multiple housing options available
  • Design complies with EN 60938

For more information, or details on the full range of SCHURTER products available from Anglia, please call +44 (0)1945 474747 or email info@anglia.com

Alternatively, click on this link to go to the main SCHURTER section where you can view other news articles and product data.
