STMicroelectronics launches iNErtial MOdule V2 demonstration board based on MEMS sensors and the STM32F103RE

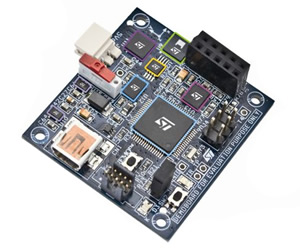

The STEVAL-MKI062V2 is the second generation of the iNEMO™ module family. It combines accelerometers, gyroscopes and magnetometers with pressure and temperature sensors to provide 3-axis sensing of linear, angular and magnetic motion, complemented with temperature and barometer/altitude readings, representing the new ST 10-DOF (degrees of freedom) platform.
Based on the previous version, the STEVALMKI062V2 represents another step forward in miniaturization, integrating five ST sensors: a 2- axis roll-and-pitch gyroscope, a 1-axis yaw gyroscope, a 6-axis geomagnetic module, a pressure sensor and a temperature sensor.
This 10-DOF inertial system represents a complete hardware platform which can be used in numerous applications such as virtual reality, augmented reality, image stabilization, human machine interfaces and robotics.
A complete set of communication interfaces with various power supply options in a small-size form factor (4 x 4 cm) make iNEMO V2 a flexible and open demonstration platform.
To aid in user development and analysis, the STEVAL-MKI062V2 demonstration kit includes a PC GUI for sensor output display and a firmware library to facilitate the use of the demonstration board features.
Key Features
•Two power supply options: power connector, USB connector
•STM32F103RE: high-density performance line ARM-based 32-bit MCU with 256 to 512 kB Flash, USB, CAN, 11 timers, 3 ADCs and 13 communication interfaces
•LPR430AL: 2-axis gyro (roll, pitch) 300°/s full scale with analog output and optional additional filters
•LY330ALH: yaw-axis gyro 300°/s full scale with analog output and optional additional filters
•LSM303DLH: 6-axis geomagnetic module: ±2 g / ±4 g / ±8 g linear acceleration full scale, magnetic field configurable full scale ±1.3 to ± 8.1 Gauss (max), I2C digital output
•LPS001DL: pressure sensor 300-1100 mbar absolute full scale with I2C digital output and barometer
•STLM75: temperature sensor with –55 to +125°C range and I2C digital interface
•Extended connector for wireless connectivity
•MicroSD™ card slot
•COM connector with RTS and CTS signals
•USB 2.0 full speed connection
•Reset button
•User LED and button
•RoHS Compliant
For more information, or details on the full range of STMicroelectronics products available from Anglia, please email info@anglia.com
