High reliability metal terminal capacitors from Murata achieve major acoustic noise reduction and are immune to PCB flexure

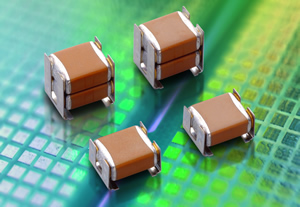

Murata has developed a series of MLCCs with a unique external metal terminal design which reduces problems associated with mounting larger size MLCCs, including acoustic noise production and cracks caused by flexing the PCB. The construction of this series, the KRM series, also allows two capacitors to be mounted on top of each other, doubling the effective capacitance to achieve very high capacitance values inside small footprints. Additionally, this series outperformed traditional MLCCs in heat shock cycle tests.
With a traditionally mounted capacitor, when a PCB is subject to bending forces this causes mechanical stress in the capacitor and solder joints which leads to cracking. Also, when subject to AC voltages, ceramic capacitors can change their shape and exert a cyclic bending force on the PCB which causes acoustic noise. The new KRM series features ferric alloy terminals which lift the body of the capacitor up to 1mm above the surface of the PCB when mounted, helping ensure that bending forces are not transmitted between the PCB and the capacitor and vice versa, avoiding the problems described above.
In tests, a KRM series capacitor was mounted on a PCB and subjected to DC 20V, AC 1V-p-p. It produced 20dB of acoustic noise compared to the 55dB produced by an identical MLCC that did not have the metal terminals and was mounted directly onto the PCB. The KRM series capacitor was also subjected to up to 6mm of PCB flexure without any cracks appearing, while the traditional MLCC had cracked before 3mm of flexure was reached. In heat shock cycle tests, the KRM series again outperformed the traditional MLCCs after 2000 cycles of -55/+125oC, 5 minutes, with no visible cracking or deformation of the capacitor or the solder joints.
Lineup of the KRM series ranges from the KRM55WR71E476MH01K, a 47uF part measuring 6.1 x 5.3 x 6.4mm and rated at 25V, to the KRM55TR72A106MH01K, a 10uF part rated at 100V which measures 6.1 x 5.3 x 4.8mm.
For more information, or details on the full range of Murata products available from Anglia please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in September 2011.
