Omron’s latest micro-switch offers enhanced reliability

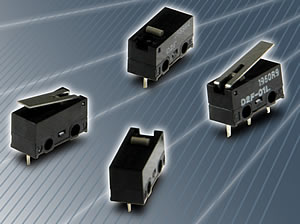

The new ultra-miniature D2F micro-switch from Omron features a unique mechanism to enhance switching reliability as well as a two-stage bottom housing with different levels designed to prevent flux penetration during manufacturing.
Just 6.5mm (h) x 12.8mm (w) x 5.8mm (d) in size, the D2F micro-switch incorporates insertion moulded terminals and a unique snapping mechanism. This is constructed with two highly precise split springs to ensure a long and reliable service life.
Andries de Bruin, Omron European Product Marketing Manager, Switches, said, “Omron’s D2F micro-switch range meets the requirements of a wide range of market sectors including security, vending, industrial, process control and embedded applications. The micro-switch product line-up includes industry standard types, low torque sealed switches and a number of industry specific models.”
The D2F micro-switch is rated 125VAC at 3A and 30VDC at 2A, and has an insulation resistance of 100MΩ and an operating temperature range of -25°C to 85°C.
The D2F supports a wide variety of terminal types and configurations including self-clinching PCB, right-angled, left-angled, and solder terminals. For high volume applications the operating lever, wire cable, terminals and housing can be customised to meet specific customer requirements. The D2F product family is RoHS compliant.
For more information, or details on the full range of Omron products available from Anglia, please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in October 2011.
