New low-profile MKP and MKT film capacitors from EPCOS for applications requiring limited insertion height

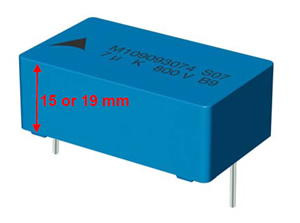

EPCOS has extended its wide range of MKP and MKT film capacitors with a pitch of 37.5 mm by case sizes with maximum heights of 15 and 19 mm.

These reduced dimensions make the capacitors particularly suitable for applications allowing only a limited insertion height, such as induction cookers, photovoltaic inverters, power supplies of flat-screen TVs and LED lighting.

Ordering code		LS [mm]	VR	CR [µF]	Applications
B32526T*	MKT	37.5	63 - 400 V DC	5.6 - 82	DC link circuits and filters for power converters up to 630 V DC with temperature requirements up to 125 ºC
B32776T*	MKP	37.5	450 - 1300 V DC	2.7 - 16	DC link circuits and filters for power converters up to 1300 V DC and high IRMS values
B32676T*	MKP	37.5	300 - 875 V DC	1.5 - 9	DC link circuits and filters for power converters up to 875 V DC and high IRMS values
B32656T*	MKP	37.5	850 - 2000 V DC	0.1 - 0.95	Resonant capacitors with high IRMS values as well as for general-purpose AC and DC applications
B32796T*	MKP	37.5	250 - 400 V AC	2.7 - 11	AC output filters

Specific values, tolerances and ordering codes

Series	VR	CR [µF]	Max. dimensions w x h x l [mm]	Ordering code	Untaped pcs/MOQ
B32526*	63 V DC	56	24.0 x 15.0 x 41.5	B32526T0566*	1040
	63 V DC	82	24.0 x 19.0 x 41.5	B32526T0826*	780
	100 V DC	33	24.0 x 15.0 x 41.5	B32526T1336*	1040
	100 V DC	47	24.0 x 19.0 x 41.5	B32526T1476*	780
	250 V DC	15	24.0 x 15.0 x 41.5	B32526T3156*	1040
	250 V DC	22	24.0 x 19.0 x 41.5	B32526T3226*	780
	400 V DC	5.6	24.0 x 15.0 x 41.5	B32526T6565*	1040
	400 V DC	8.2	24.0 x 19.0 x 41.5	B32526T6825*	780
B32776*	450 V DC	12	24.0 x 15.0 x 41.5	B32776T4126K*	1040
	450 V DC	16	24.0 x 19.0 x 41.5	B32776T4166K*	780
	575 V DC	8.5	24.0 x 15.0 x 41.5	B32776T5855*	1040
	575 V DC	12	24.0 x 19.0 x 41.5	B32776T5126K*	780
	800 V DC	6.8	24.0 x 15.0 x 41.5	B32776T8685*	1040
	800 V DC	8.5	24.0 x 19.0 x 41.5	B32776T8855*	780
	1100 V DC	3.9	24.0 x 15.0 x 41.5	B32776T0395*	1040
	1100 V DC	5	24.0 x 19.0 x 41.5	B32776T0505*	780
	1300 V DC	2.7	24.0 x 15.0 x 41.5	B32776T1275*	1040
	1300 V DC	3.5	24.0 x 19.0 x 41.5	B32776T1355*	780
B32676*	300 V DC	6.2	24.0 x 15.0 x 41.5	B32676T3625*	1040
	300 V DC	9	24.0 x 19.0 x 41.5	B32676T3905K*	780
	450 V DC	4	24.0 x 15.0 x 41.5	B32676T4405*	1040
	450 V DC	4.7	24.0 x 19.0 x 41.5	B32676T4475*	780
	630 V DC	2.7	24.0 x 15.0 x 41.5	B32676T6275*	1040
	630 V DC	3.5	24.0 x 19.0 x 41.5	B32676T6355*	780
	750 V DC	2	24.0 x 15.0 x 41.5	B32676T1205*	1040
	750 V DC	2.7	24.0 x 19.0 x 41.5	B32676T1275*	780
	875 V DC	1.5	24.0 x 15.0 x 41.5	B32676T8155*	1040
	875 V DC	2	24.0 x 19.0 x 41.5	B32676T8205*	780
B32656*	850 V DC	0.82	24.0 x 15.0 x 41.5	B32656T8824*	1040
	850 V DC	0.95	24.0 x 19.0 x 41.5	B32656T8954*	780
	1000 V DC	0.56	24.0 x 15.0 x 41.5	B32656T0564*	1040
	1000 V DC	0.72	24.0 x 19.0 x 41.5	B32656T0724*	780
	1250 V DC	0.33	24.0 x 15.0 x 41.5	B32656T7334*	1040
	1250 V DC	0.43	24.0 x 19.0 x 41.5	B32656T7434*	780
	1600 V DC	0.18	24.0 x 15.0 x 41.5	B32656T1184*	1040
	1600 V DC	0.22	24.0 x 19.0 x 41.5	B32656T1224*	780
	2000 V DC	0.10	24.0 x 15.0 x 41.5	B32656T2104*	1040
	2000 V DC	0.13	24.0 x 19.0 x 41.5	B32656T2134*	780
B32796*	250 V AC	8	24.0 x 15.0 x 41.5	B32796T2805*	1040
	250 V AC	11	24.0 x 19.0 x 41.5	B32796T2116*	780
	300 V AC	5.6	24.0 x 15.0 x 41.5	B32796T3565*	1040
	300 V AC	7.5	24.0 x 19.0 x 41.5	B32796T3755*	780
	350 V AC	4	24.0 x 15.0 x 41.5	B32796T8405*	1040
	350 V AC	5	24.0 x 19.0 x 41.5	B32796T8505*	780
	400 V AC	2.7	24.0 x 15.0 x 41.5	B32796T4275*	1040
	400 V AC	3.5	24.0 x 19.0 x 41.5	B32796T4355*	780
