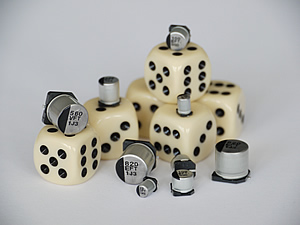

Panasonic launches a new miniaturised low ESR SMD aluminium electrolytic capacitor series
With the new V-FT series, Panasonic introduces the latest low ESR SMD aluminium electrolytic capacitor. This product offers high capacitance and low resistance values combined with a small-sized case. The outstanding performance of the new V-FT series is achieved by high-capacity electrode foil and sophisticated Panasonic low resistance technology.
Compared to the leading low ESR Panasonic series (V-FK and V-FP) and to comparable competitor products, the new V–FT series is miniaturised by 1 case size with same CV values and low resistance. The V-FT series corresponds to future market needs requesting high performance components in small size ratio. Less material contributes to higher environmental friendliness.
Features compared to V-FK series:
- Miniaturisation & weight reduction = Down-sizing by up to 60%
- Stable operation & high efficiency = ESR reduction down 50%
- Ripple current increase up to 1.4 times
- High reliability & long lifetime = 2000h at 105°C
- High temperature lead-free reflow soldering
Applications:
- Switching Power Supplies
- DC/DC converter
- Automotive equipment
- Industrial electronics
- Digital devices
- Telecommunication, e.g.base stations
- Smart Meters
- New designs for high efficiency and miniaturisation
Technical Data:
Voltage range 6.3VDC to 50VDC
Capacitance range 10 uF to 2200 uF
Temperature range -55°C to +105°C
Endurance 2000h at 105°C
Size B to G case size (Ø4 to Ø10mm)
Soldering peak temperature 260°C (Ø4 to 6.3mm) / 245O C (Ø8 to 10mm)
For more information, or details on the full range of Panasonic products available from Anglia, please email info@anglia.com
