KOE/Hitachi Rugged+ line-up expands with 7.0 inch IPS TFT

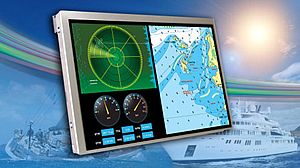

KOE/Hitachi have announced the latest addition to their growing range of Rugged+ TFT display modules. The new 7.0" TX18D35VM0AAB is designed and manufactured to function in challenging and harsh environmental conditions. IPS (in-plane-switching) TFT technology provides exceptional colour saturation, colour stability, contrast and black levels with a 170° wide vertical and horizontal viewing angle.
The 15:9 wide aspect ratio TX18D35VM0AAB features WVGA resolution (800 x 480 pixels). The display implements a LED backlight which provides a brightness of 800cd/m² and a half brightness lifetime of 70K hours. A contrast ratio of 600:1 ensures display images are clear, concise and easily viewed.
Mark Stephenson, Product Marketing Manager, KOE/Hitachi commented, "Reliable and consistent operation under extreme temperature, mechanical shock and vibration are a necessity in many harsh environments. All of KOE/Hitachi's Rugged+ industrial displays are designed to operate under the severe and rigorous conditions found in some industrial applications and still provide exceptional optical performance."
The ruggedized 7.0" TFT features an industry standard 40-pin, 6-bit RGB, CMOS interface which enables a colour palette of up to 262K colours. The display module has dimensions of 165.0mm (w) x 104.0mm (h) x 12.8mm (d) and an operating temperature range of -30°C and +80°C.
KOE/Hitachi recently announced the new line-up of Rugged+ TFT LCD display modules which are specifically intended for use in extreme environment applications. The entire range of Rugged+ displays feature industrial environment operating specifications with high brightness, long-life LED backlights and will provide dependable operation between -30°C and +80°C. KOE/Hitachi's Rugged+ TFT displays are designed for high reliability medical, marine, aerospace, automotive and industrial applications.
The new 7.0" TX18D35VM0AAB module and the full line-up of KOE/Hitachi Rugged+ TFT display modules are available through Anglia.
For more information, or details on the full range of KOE products available from Anglia, please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in March 2012.
