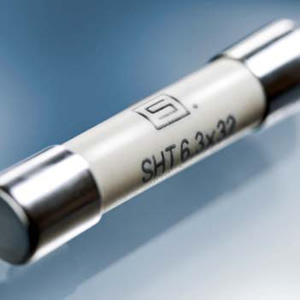

SCHURTER introduces compact high performance fuse for the protection of 3-phase systems
With the SHT 6.3x32, SCHURTER is expanding its range of high-voltage equipment fuses. The high breaking capacity of 1500 A at rated voltage opens up many interesting application possibilities. The SHT 6.3x32 is available as a fuse link or pigtail version. Both models protect personnel and electronic systems from overcurrent and potential fires resulting from catastrophic short circuit events.
SCHURTER is initially offering the SHT 6.3x32 in ten rated currents from 1 to 8 A. The fuse stands out due to its high breaking capacity of 1500 A at a voltage rating of 500 VAC. Besides a wide range of applications in the energy and industrial sectors, the SHT 6.3x32 is especially well suited for the protection of 3-phase systems.
SCHURTER offers the SHT 6.3x32 as a fuse link or a version with pigtails. Fuse links can be used in clips and fuse holders, which allows easy replacement of fuses without de-soldering. SCHURTER offers a broad range of such clips and fuse holders suited for use with the SHT 6.3x32. The pigtail version allows direct assembly on printed circuit boards by means of through-hole technology and soldering.
As a fuse that conforms to RoHS, the SHT 6.3x32 can be put to use in lead-free systems. Compatibility with the most important competitive products allows SCHURTER to offer the SHT 6.3x32 as a form, fit, and function substitute product. The SHT 6.3x32 fuse is cURus approved.
Technical features and benefits:
- High voltage ratings up to 500 VAC
- High breaking capacity of 1500 A @ 500 VAC
- Range of rated currents from 1 to 8 A
- Time lag (T) characteristics according to UL 248-14
Recommended fuse holders and clips for fuse link type:
- Shock-safe fuse holders for panel or PCB mounting: FEC, FUL, FUA and FUP
- Fuse holders for PCB mounting: OGD and OGD-SMD
- Clips for PCB mounting: CQP and OG (Clip) 5x20 / 6.3x32
Applications:
- 3-phase systems
- Building automation: heating, ventilation and air conditioning (HVAC)
- Photovoltaic: protection between inverter and grid
- Frequency converters
- Power electronics
For more information, or details on the full range of SCHURTER products available from Anglia, please email info@anglia.com
