HARTING announces a compact DIN 41612 type 3C crimp female connector with housing

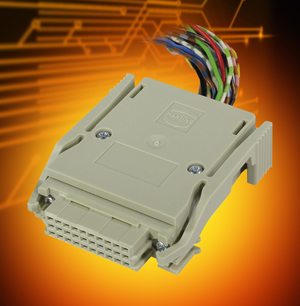

HARTING has introduced a compact DIN 41612 type 3C crimp female cable connector for use with smaller printed circuit boards or sub-assemblies.
The new connector is designed for ease of use. Three possible outlet ports are available which can be opened up by simply breaking through the external walls as required. The locking levers are pre-injection moulded, so that subsequent assembly is not necessary. This arrangement reduces the number of individual components.
The crimp contacts are available on reels of 500 or 5000 contacts for series production and as individual contacts for repair purposes. Crimping can be carried out with a hand crimping tool, a semi-automatic device or a fully automatic device, depending on the unit volume and level of automation.
Strain relief is ensured by a cable tie which protects the cable and attaches it directly to the housing. Straight and right-angled male connectors, which snap into the shell housing, are available as mating plugs. The new connector offers the same robustness as HARTING’s established devices in the full and half sizes.
To view the data sheet please click here.
For more information, or details on the full range of Harting products available from Anglia, please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in March 2013.
