Omron extends MEMS gauge pressure sensor range

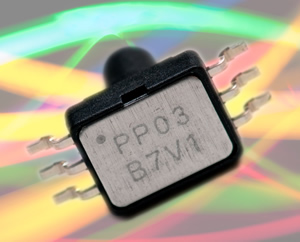

The new Omron 2SMPP-03 MEMS based pressure sensor is ideal for medical applications such as negative pressure wound therapy (NPWT) as well as leak detection, movement control, level indicators, home appliances and industrial control instruments. It offers precise measurement between -50kPa to +50kPa, complementing the 2SMPP-02 with a 0 to 37kPa range.
Both devices share exceptionally compact external dimensions, of just 6.1 by 4.7 by 8.2mm. They offer a reduced offset voltage and span dispersions of ±4.0 mV and 3.1 mV, which makes trimming unnecessary. The low power consumption of 0.2mW associated with a drive current of just 100 micro-Amps provides significant energy savings. The specifications include a non-linearity of less than 0.8% of full-scale and a hysteresis of 0.5% of full-scale. Another outstanding feature is low temperature influence span of +/-1% and offset of +/-3% of full-scale.
Omron has a strong portfolio of innovative technologies including MEMS sensors for pressure, flow and thermal measurement applications as well as vibration and tilt sensors.
Click here to download the datasheet.
For more information, or details on the full range of Omron products available from Anglia, please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in April 2013.
