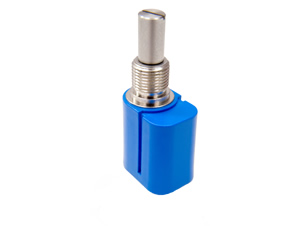

Bourns releases new non-contacting multiturn rotary position sensor for heavier duty applications
Bourns has announced the release of the model AMM20B non-contacting multiturn rotary position sensor.
The new multiturn rotary position sensor is designed to meet the specifications of heavy duty applications requiring long cycle life and high reliability. It features a 12-bit resolution and factory programmable electrical angle from 1080 to 3600 degrees. With a rotational life of up to 50 million cycles, the Bourns® Model AMM20B Sensor is a highly versatile multiturn position sensing device.
Basic features and typical applications include the following:
Features
■ Non-contacting magnetic technology
■ Highly resistant to vibration/shock
■ Highly resistant to fluid/dust ingress
■ Programmable at factory for zero position
■ Robust design for industrial applications
■ Highly repeatable
■ RoHS compliant
Applications
■ Patient platform positioning feedback
■ Pneumatic control valve position feedback
■ Draw wire position sensors
■ Camera positioning
■ Actuator motor position feedback
■ Rudder positioning
■ Tilt control and tilt positioning feedback
■ Steering, lift-and-shuttle and suspension systems
Click here to download the data sheet
For more information, or details on the full range of Bourns products available from Anglia, please email info@anglia.com
