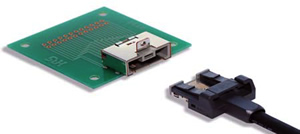

1.5mm pitch, USB 3.0 compliant, high speed transmission shielded connector from Hirose
The GT32 series comprises of shielded wire-to-board connectors that have been designed to support USB 3.0 high speed transmission up to 5 Gbps. In addition, the Hirose connectors meet with automotive specification ensuring resistance to shock vibration, thermal shock, heat and sulphur dioxide.
The connector housings have a strong structure incorporating a robust positive lock. The lock provides a clear tactile click after mating to confirm the connector is fully engaged guaranteeing complete electrical and mechanical connection.
The contacts have a highly reliable unique 2-point contact structure. Each contact features a special protrusion, which provides high contact forces and good wiping effects during the mating process. The contacts in the receptacle housing are set back to protect them from damage from misaligned mating or wrenching of the plug.
Suitable applications are automotive, railway systems, FA cameras, servo amps and medical equipment.
Key Features
• 10 & 19 contact positions
• 1.5mm pitch
• 30V voltage rating
• RoHS & ELV compliant
• Enhanced EMI prevention
For more information, or details on the full range of Hirose products available from Anglia, please email info@anglia.com
