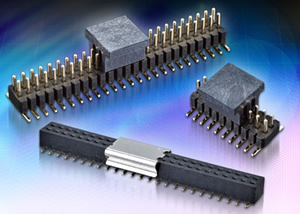

Harwin adds 1.00mm pitch headers and sockets to its range of Board to Board connectors
The new M40 series is a range of surface mount pin headers and sockets, providing a new cost effective solution for secure and highly reliable PCB-to-PCB connections.
Featuring a low profile design and dual beam contact system, the connectors reduce PCB space without sacrificing connector reliability. They also offer good performance and durability and are rated at 1.0A per contact and withstand 300 cycles without degradation.
These new 1.00mm pitch interconnects are available in dual row format and feature gold plated phosphor bronze contacts, surface mount solder tails and location pegs. Contact counts range from 2 x 3 up to a maximum of 2 x 25 positions. All components come packaged in tape and reel format for fully automatic pick and placement.
Features
● 1.00mm pitch, dual row format
● Low profile design
● 2 x 3 to 2 x 25 positions
● Dual beam contact system
● Gold plated phosphor bronze contacts
● Rated 1.0A per contact
● 300-cycle life
● Supplied in tape & reel
● SMT solder tails & location pegs
For more information, or details on the full range of Harwin products available from Anglia, please email info@anglia.com
