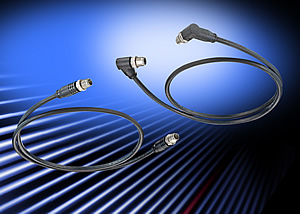

HARTING launch range of D-coded overmoulded cable assemblies
A new range of M12 D-coded overmoulded cable assemblies from HARTING uses 360° screened M12 Ethernet connection cable to offer reliable data transmission, particularly in industrial environments affected by electromagnetic interference.
The combination of high-performance screening with a design aimed at optimum data rates ensures reliable and interference-free data transmission, particularly where special industrial standards are applied.
All 4-wire cable connections are overmoulded along with the optimised M12 components, which feature crimp connection technology, gold-plated contacts and IP 65/67 protection. The cables can also be supplied in 100 m rings and on 500 m cable drums.
The new assemblies meet the performance requirements of Cat.5e, 4-pole, D-coded as specified in the IEC 61076-2-101 standard, and are also approved for use in rail applications.
M12 connectors are widely used in industry and transport applications because of their robust design, superior protection type and good vibration-proof properties.
To view the D-coded overmoulded M12 cable assembly (4xAWG 22.19) data sheet please click here.
To view the D-coded overmoulded M12 cable assembly (4xAWG 2.7) data sheet please click here.
For more information, or details on the full range of Harting products available from Anglia, please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in August 2013.
