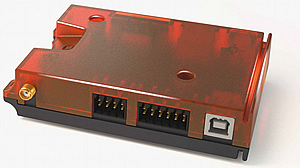

Cinterion EHS6 Terminal: 3G Highspeed M2M Gateway powered by JavaTM
Gemalto's new suite of Cinterion® 3G SMART Terminals takes M2M simplicity to a whole new level. Leveraging Gemalto's next-generation Java® embedded technology, the plug-and play solutions powered by a five-band HSPA+ baseband enable high-speed, secure wireless TCP/IP connectivity anywhere in the world for a variety of industrial applications such as metering, remote monitoring, transportation, security and many more. The Cinterion gateways come in three versions providing universal industrial interfaces e.g. USB or Ethernet are encased in a compact, rugged housing with integrated SIM cardholder and unprecedented mounting options.
Plug & Play
EHS6 Terminal is a simple and reliable plug-and-play communication device that allows new M2M implementers to quickly connect their industrial applications using wireless technology. With very little integration and approval efforts, it provides a cost effective, swift solution for enterprise optimisation technology.
Embedded Java™
Java offers easy and fast application development, a broad choice of tools, high code reusability, easy maintenance, a proven security concept, on-device debugging as well as multi-threading programming and program execution.
Highly Flexible Mounting Concept
About the size of credit card and encased in robust plastic housing, the miniaturized terminal works in virtually any application providing secure 24-7 connectivity. For quick and easy implementation, the terminal is compatible with a variety of mounting schemes including:
- DIN rail mounting
- C-rail mounting
- Screw fixing
- The use of cable ties
| Products | EHS6T USB | EHS6T LAN | EHS5T |
| RS-232 | ● | ● | |
| RS-485 | ● | ||
| USB 2.0 | ● | ● | |
| Ethernet | ● | ||
| Frequencies | Five Band 3G, Four Band 2G | Five Band 3G, Four Band 2G | Dual-Band 2G/3G |
Common to all are multiple GPIO’s, I²C, SPI and RS-232 interface via Weidmüller connector.
Key features of the EHS6T Terminal include:
- Five Bands UMTS (WCDMA/FDD)
Bands: 800, 850, 900, 1900 and 2100 MHz - EDGE/GPRS Class 12
- FOTA
- Flexible mounting concept
- USB 2.0
- Quad-Band GSM
Bands: 850, 900, 1800 and 1900 MHz - TCP/IP stack access via AT command and transparent TCP services
- Secure Connection for client IP services
- Java™ profile IMP-NG & CLDC 1.1 HI
For more information, or details on the full range of Cinterion products available from Anglia, please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in January 2014.
