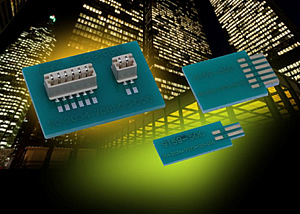

AVX introduces the first single-piece, low pin count, top entry, vertical card edge connector for harsh industrial applications
AVX has introduced a unique new one-piece, top-entry, vertical card edge connector for use in a broad range of industrial applications. Available with two to six positions, this latest addition to AVX’s continuously expanding 00-9159 card edge connector series is the first single-piece, low pin count, top-entry, vertical card edge connector available for the industrial marketplace. Enabling small perpendicular daughter cards – such as module and programming cards – to be easily plugged into the top side of a main board, the new 00-9159 Series connector features an innovative, dual-slotted PCB board opening capable of accommodating 0.8mm or 1.6mm board thicknesses. This unique configuration, combined with high-reliability, gold-plated beryllium copper spring contacts, provides engineers with a versatile, robust, and cost-effective single-piece solution for low pin count perpendicular PCB mating in harsh industrial applications.
“A complement to the single-piece, bottom-entry, vertical card-edge connector that we released last December, the new 00-9159 single-piece, top-entry, vertical card edge connector facilitates easy plug-ability for small daughter cards and, with its unique T-shaped PCB slot capable of accepting both 0.8mm and 1.6mm boards, provides engineers with additional design flexibility,” said Tom Anderson, product manager at AVX.
Featuring a removable pick and place cap to support robotic placement and SMT termination, the new 00-9159 Series connector is rated for 2A per gold-plated BeCu contact, 250VAC, and 10 cycles in temperatures spanning -40°C to +120°C, providing a high-reliability alternative to traditional and more costly two-piece connector solutions in harsh industrial environments.
Click here for more information on Anglia Live. or click on this link for an overview of the range of AVX interconnects on Anglia-Lighting.com
For more information, or details on the full range of AVX products available from Anglia, please email info@anglia.com
