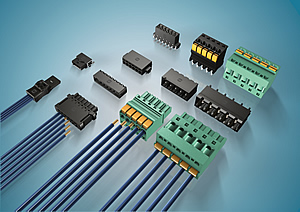

HARTING introduces 2.54 mm pitch version of har-flexicon® miniature rapid-connection SMD PCB connection system
HARTING has introduced a 2.54 mm pitch version of its har-flexicon® miniature rapid-connection system for printed-circuit boards incorporating surface-mount devices.
har-flexicon® is tailored to the market demand for screwless rapid termination technology and economical processing for miniature electronic assemblies. It is designed to be compatible with SMT and reflow soldering processes as well as with automatic loading systems using pick-and-place technology.
The new system, incorporating SMD PCB terminals and connectors with 2.54-mm spacing, enables the flexible, field-installable rapid connection of individual wires with push-in spring-force termination technology as well as providing a stable basis for surface mount connectivity.
Rigid and flexible conductors are available with cross-sections from 0.14 to 0.5 mm². Straight and angled components with 2-12 positions are available for the PCB. For cross-sections up to 2.5 mm², reflow products with push-in spring force termination technology with a pitch of 3.50/3.81 mm and 5.00/5.08 mm are available as PCB terminals and PCB connectors.
To view the data sheet please click here.
For more information, or details on the full range of Harting products available from Anglia, please email info@anglia.com
