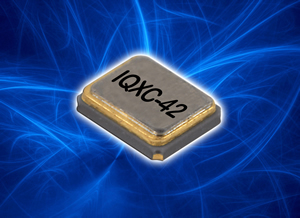

IQD introduces ultra-miniature crystal only 0.5mm high
IQD Frequency Products has launched one of the world’s smallest quartz crystals, the IQXC-42 which measures just 2.0 x 1.6mm with a height of only 0.5mm. The new ultra-miniature model is especially suitable for many portable applications such as hand held inventory control devices, battery powered telemetry equipment, notebook computers and surveillance devices.
The IQXC-42 crystal is available in frequencies between 20MHz and 50MHz and operates over the full industrial temperature range of -40 to +85°C. Frequency stabilities can be specified as low as ±10ppm over the commercial temperature ranges. In line with the requirements of the latest generation of microprocessors the load capacitance can be as low as 8pF.
Housed in a 4-pad ceramic package with a hermetically sealed metal lid which helps to minimise the EMI radiation, the product is designed to able to withstand shock levels of up to 1000G in accordance with IEC 60068-2-27. The IQXC-42 is available on tape and reel for automatic assembly as well as loose in bulk pack for low volume prototypes.
Click here for more information or buy from Anglia Live.
For more information, or details on the full range of IQD products available from Anglia, please email info@anglia.com
