Cree introduces industry's brightest High-CRI LED module
New 6000-Lumen LMH2 LED module extends family’s no-compromise color quality and efficacy

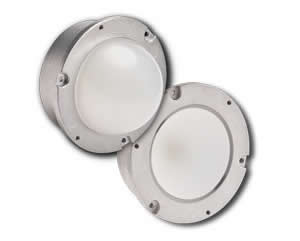

The new 6000-lumen LMH2 LED module from Cree is the industry’s brightest module to offer color-quality greater than 90 CRI at a consistent efficacy of 85 lumens per watt across a wide range of color temperatures (3000 K, 3500 K and 4000 K). The no-compromise LED solution is the ideal replacement for 100-watt ceramic-metal-halide lamps in high-ceiling applications, using 30 percent less power, lasting three times as long and delivering instant-on, dimmable light.
The Cree® LMH2 family of modules is the only light source that can address such a wide range of lighting applications in a common form factor. This allows lighting manufacturers to create an entire product portfolio with just one tooling set and one optical design. Lighting products based on the LMH2 LED module also enable lighting designers to illuminate a space with one light source and lighting technology, helping to eliminate the problems, such as color consistency and re-lamping, that come with using different lighting technologies.
Lighting manufacturers looking to shorten the time-to-market for their luminaire design can also take advantage of the LMD600, Cree’s cost-effective, universal driver that is designed to power the new 6000-lumen LHM2. Dimmable to one percent, the LMD600 is optimized for a controllable, indoor architectural environment. The LMD600 can also handle up to 90°C case temperature and has a low-voltage, limited-energy-driver rating that does not require special enclosures or large-gauge wires, delivering design flexibility and a low system cost for lighting manufacturers. Cree also offers a range of reflectors and heat sinks, as well as a splice box for the entire LMH2 LED module family.
The complete LMH2 module family is available in a range of lumens (850 to 6000) and color temperatures (2700 K to 4000 K), delivering up to 108 lumens-per-watt efficacy and a CRI greater than 90. These lighting characteristics combined with multiple driver options, including digital-addressable lighting interface (DALI) and DALI® touch-dimming driver options, enable lighting manufacturers to expand their portfolio quickly and easily. Designed for 50,000 hours of operation, the LMH2 module comes with Cree’s industry-leading five-year warranty. The LMH2 is also UL-recognized and complies with multiple international regulatory and safety standards. Luminaire makers seeking ENERGY STAR® qualification will have access to specification and performance data, including LM-80 reports, which can speed regulatory approvals.
Samples and production quantities are available with standard lead times from Cree distributors. Please visit www.cree.com/lmh2 for additional information.
For more information, or details on the full range of Cree products available from Anglia, please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in March 2014.
