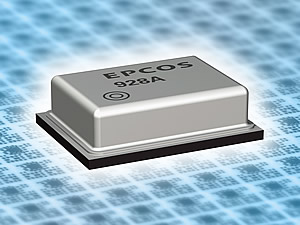

MEMS microphone with outstanding SNR from TDK EPCOS
TDK has extended its range of EPCOS MEMS microphones with the new C928 type. This microphone is distinguished by its particularly high signal-to-noise ratio (SNR) of 66 dB(A) in the frequency range between 20 Hz and 20 kHz.
In conventional microphones, an improved signal-to-noise ratio usually leads to a sharp rise in nonlinear distortions at high sound pressures. Thanks to the innovative design of the C928 MEMS microphone, a distortion factor of only one percent is produced even at a sound level of 131 dB. That makes it equally suitable for recording extremely loud sound sources.
Besides its excellent acoustic properties, the C928 features a compact size with a footprint of 3.35 mm x 2.5 mm and an insertion height of only 1 mm. Thanks to its symmetrical output, the new MEMS microphone offers high immunity to interference. Its operating voltage is between 1.6 V and 3.6 V, and its maximum power consumption is 140 µA.
Main applications
- Smartphones and other mobile electronics devices
Main features and benefits
- Very high signal-to-noise ratio of 66 dB(A)
- Low distortion of 1 percent even at sound levels of 131 dB
- Compact dimensions of 3.35 mm x 2.5 mm x 1 mm
Mass production of the C928 is due in Q1-2015
For more information, or details on the full range of EPCOS products available from Anglia, please email info@anglia.com
Delicious
Digg
Reddit
Facebook
StumbleUpon
Google
Newsvine
Yahoo
This news article was originally published in August 2014.
