High tolerance small crystal unit from Murata suits wearable and data communications applications
Murata has announced the launch of the XRCFD and XRCMD series of highly accurate miniature 1612 size crystal units. With an overall frequency precision of +/- 20 ppm, both series are able to support the stringent frequency tolerances required for wireless communications such as LTE/3G, Wi-Fi, Bluetooth®, Bluetooth Low Energy, ZigBee and NFC. They are also suitable for wired data communications applications such as Ethernet, USB3 in addition to hard disk and solid-state disk computing systems.

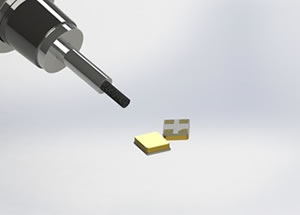

Measuring just 1.6 x 1.2 x 0.35 mm the XRCFD-F series crystal unit is available with nominal operating frequencies from 24.000 to 31.999 MHz. Operating temperature is across the range of -30 to +85 degrees C. The XRCMD-F series has an operating frequency in the range 32.000 to 48.000 MHz and measures 1.6 x 1.2 x 0.33 mm.
Both series employ Murata's fusion sealing technology for a complete hermetic seal and uses an alloy in the metal cap structure. Its proprietary packing technology, unavailable in existing crystal units, enables superior quality and cost performance, and is suitable for mass production. At the same time it achieves superior miniaturization, contributing to a high-density mounting and slimming of the unit.
For more information, or details on the full range of Murata products available from Anglia, please email info@anglia.com
