Anglia Live now offers a wide range of Roxburgh EMC power filtering products backed up by an extensive inventory held in our UK based distribution centre ready for same day despatch

All of the products in the Roxburgh EMC range are RoHS compliant and manufactured to the highest quality standards. Many are manufactured within the UK adding to the trusted reputation held globally by this longstanding brand.

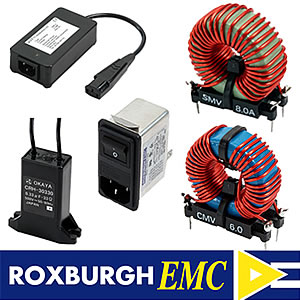

The Anglia Live inventory of Roxburgh EMC filter products is competitively priced and includes all the popular models of PCB mount common mode and differential mode chokes, chassis filters, IEC inlet filters, free-standing filters and RC networks / spark quenchers.

Common Mode Chokes CMV series

Roxburgh EMC's CMV range of common / asymmetrical mode chokes is available with current ratings and inductances from 1 Amp / 18mH to 8 Amp / 0.7mH and has a maximum temperature rise of 30°C at full load. This range can be used for all AC and DC applications up to line voltage of 250V and supply frequency of 440Hz.

Click here to view the Roxburgh CMV range available from Anglia Live

Differential Mode Chokes SMV Series

Roxburgh EMC‘s SMV range of differential / symmetrical mode chokes is available with current ratings and inductance, from 1 Amp / 1.1mH to 8 Amp / 0.08mH, and has a maximum temperature rise of 30°C at full load. This range of differential/symmetrical mode chokes can be used for all AC and DC applications up to line voltage of 250V and supply frequency 440Hz.

Click here to view the Roxburgh SMV range available from Anglia Live

Chassis Filters RES Range

The RES1 and RES5 series are low cost single stage chassis mounted filters from Roxburgh EMC with excellent performance characteristics. Available in 5 current ratings from 3 to 15 Amps, these single stage chassis mounted filters have a good performance for both common mode and differential mode interference. Meets with the requirement of UL1283 and overvoltage category II of IEC664. Typical applications are communications equipment, measuring and testing instruments, industrial equipment such as UPS, inverters, converters, printers, copiers and fax machines.

Click here to view the Roxburgh RES range available from Anglia Live

IEC Inlet Filters RI series

The RI series IEC inlet filter ranges from Roxburgh EMC are available in a large variety of styles and ratings. The RID series is a general purpose inlet with faston tags for termination. The RIR series combines the IEC inlet connector with an integral fuse whilst the RIP, RIQ and RIS series’ combine an IEC inlet connector with integral fuses and power on off switch. Also offered are snap fit versions which cut production times and reduce panel space. The RIS series features twin integral fuses for use in regions with un-polarised mains connection systems. The RI series is a versatile and cost effective range of products with current ratings from 1A to 10A

Click here to view the Roxburgh RI series available from Anglia Live

Free Standing IEC in-Line Filters PMF Series

The PMF series is a free standing IEC320 style high performance filter network including an earth line choke, and across the line MOV (metal oxide varistor for surge suppression). The PMF range of IEC inlet in line filters is available rated at 6 Amps, 10 Amps and now 16 Amps. For use with computers and instrumentation which may be subject to high levels of mains borne interference and voltage spikes.

Click here to view the Roxburgh PMF series available from Anglia Live

RC Network / Spark Quencher XE Series

Roxburgh EMC's range of RC networks are suitable for a variety of applications. RC Networks are available with flying leads (XEB) or PCB mounting (XE). The XE series of RC Networks is available with 0.1µF 120Ω and 0.2µF 120Ω. Rated at 250V the RC Networks consist of a capacitor in series with a high quality film resistor. Applications include suppression when switching reactive loads, and as a snubber network in SCR and triac protection.

Click here to view the Roxburgh XE series available from Anglia Live

Click here for more information or buy from Anglia Live.
