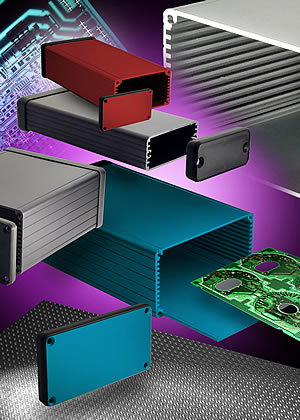

New colour options brighten up Hammond's extruded enclosures
New standard red or blue anodised finishes to the 1455 family of extruded aluminium instrument cases from Hammond Electronics enable designers to make their products stand out from the crowd without going to the time and expense of specifying custom finishes.
The extensive 1455 family consists of 22 sizes from the compact 60 x 45 x 25 mm to the largest 220 x 165 x 52 mm size. All sizes are now available in a durable red or blue anodised finish in addition to the original clear and black anodised options.
The 1455 is designed to house PCBs mounted horizontally into internal slots in the body of the case or as an enclosure for any small electronic, electrical or pneumatic instrument. All sizes apart from the smallest ones have a removable slide cover on the case body to allow access to the PCB when it is in situ. The 14 largest sizes are designed to accept a standard 100 x 160mm or 100 x 220mm Eurocard. All sizes of the 1455 are supplied complete with fixings and self-adhesive rubber feet; flange brackets that enable the unit to be mounted directly to a shelf or wall are also available as an optional accessory. Two types of end panels are available: either a flat aluminium panel, retained to the case body by a separate plastic bezel or an easy to machine one-piece moulded black ABS plastic end panels complete with integral bezel.
For more information, or details on the full range of Hammond Manufacturing products available from Anglia, please email info@anglia.com
