CamdenBoss adds interlocking inverted headers to its pluggable terminal block range
CamdenBoss is set on the path of expanding its range with new and innovative product designs. And the latest addition to its pluggable terminal block series, the CTB97, doesn't disappoint.

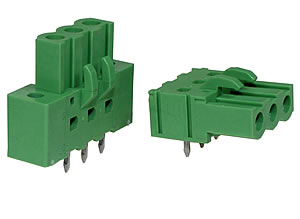

This new range of versatile 5.08mm pitch interlocking inverted headers or PCB mount female plugs is available in horizontal and vertical orientation. This facilitates the connection of printed circuit boards fitted with male headers which can be used in conjunction with CamdenBoss's vertical CTB9308 and horizontal CTB9358.
Moulded from green UL94-V0 flame retardant PA, the two and three pole CTB97 PCB terminal blocks feature interlocking polarised mouldings for extra versatility and feature guided pin alignment and dual-pin row for stability on the PCB.
CamdenBoss offers a multitude of pluggable terminal blocks, a comprehensive range encompassing plugs and headers, featuring pitches of 3.5, 3.81, 5.0, 5.08, 7.5, 7.62 and 10.16mm.
Plugs and headers are available in horizontal and vertical orientation while vertical plugs are available in standard and reversed polarisation for managing awkward wiring configurations. Vertical plugs are also available with wire entry holes and screws on the same face for use where wiring access is restricted.
For high vibration environments, flanges are available and extra density double deck headers provide solutions where additional connections are required.
For applications where wiring the plugs is awkward or time is constrained, the CSTB92 series of screwless plugs provides a solution. In place of the screw terminal, the screwless version has a spring-loaded clamp that can be opened with a small screwdriver or by using the CSTB9C wiring lever.
Rated at 20A, 320V AC, applications may be found in all areas of pluggable terminal block use, such as fire and security, energy management, power supplies, metering, test and measurement and industrial control.
All CamdenBoss pluggable terminals are manufactured using the highest quality materials and hold UL and VDE approvals.
For more information, or details on the full range of CamdenBoss products available from Anglia, please email info@anglia.com
