Removable SMD Jumper Links for LED arrays from Harwin cut the cost of Production, free samples available from Anglia

Easy-to-use Links cut the cost of LED array assembly, simplify rework and cut production time.

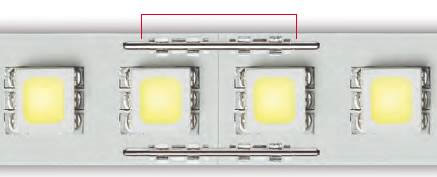

Harwin have developed an easy means of connecting LED arrays together, simply and effectively removing any need for post-assembly soldering operations, and facilitating rework both in the factory and in the field.

Part of Harwin's extensive range of PCB hardware, the removable link system comprises of surface mount clips and removable linking bars. The clips are provided in tape and reel packaging for automated placement, 10K per reel. Bars are supplied in bags of 100 units for the electrical connection between the clips. The complete system provides secure retention for the linking bars, whilst allowing them to be speedily removed and replaced if a LED array or panel requires replacement. The clips are available in both Vertical and Horizontal orientations.

These removable jumper links allow users to further automate the processes involved in manufacturing and assembling multiple LED arrays, eliminating manual soldering and/or the use of more costly conventional connectors. The novel design allows for the removal of an individual array if it fails, without disturbing adjacent PCBs, facilitating easy and quick serviceability and repair.

The jumper links occupy minimal board space and have been tested with currents ranging from 3A to 13A, making them ideal as a cost-effective PCB connection system for other applications besides LED arrays. Harwin have produced a test report on current ratings for the removable jumper links which can be downloaded here.

Harwin's PCB Hardware Product Specialist commented: "The alternative to our new Removable Jumper Links is either soldering a bar or wire connection, which is time-consuming and risks damaging the board; or the use of a plug-and-socket connector, which is expensive and makes the replacement of any one module within a complex array almost impossible. Removable Jumper Links enable fast connection to all four sides of an LED array, and can even accommodate PCB misalignment."

Click below to view a short video on Harwin's range of Jumper Link products

Click here for more information or to buy from Anglia Live.

Click here to download the Removable SMD Jumper Link brochure.

Anglia are offering customers FREE samples of the Removable Jumper Links from Harwin, please fill in the form below to register for your FREE samples now.
