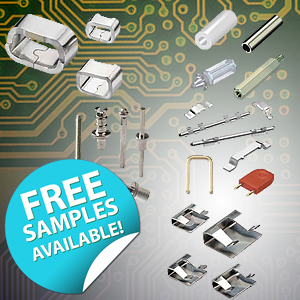

Introducing wide range of PCB accessories from Harwin

Harwin has been manufacturing and designing PCB hardware accessories since the company's foundation. The traditional turned products are now supplemented by a wide and innovative range of Surface Mount products.

Surface Mount Test Points

Test points have been available to the industry for some time, but standard designs require a secondary hand assembly to the PCB. Harwin's Test Points are Surface Mount which allow them to be soldered at the same time as the rest of the components on the PCB saving time and cost.

Test points give consistent, repeatable locations to take test readings from a PCB.
The test point is a sacrificial item - by hooking or probing this loop rather than a bare track or a component leg, damage to important circuitry is avoided.
Harwin's range offers 3 sizes for different types and sizes of probe hook and spring probes.
Compact footprints, for space saving and robust design for repeated use.

Click here for more information or buy from Anglia Live.

Jumper Links

Fixed Links are an easy way of crossing over tracks when a design runs out of space on the PCB, they provide a cost-effective alternative to via plated-through holes and an additional layer to the PCB. Removable jumper links can be used as a programming method (similar to Jumper Sockets on Pin Headers), or for connecting adjoining PCBs such as an LED array.

Both Fixed and Removable links are available in Through-Hole and Surface Mount Designs.
Range of heights and pitches to cater for different board requirements and to aid design flexibility.
Through-Hole Fixed links can be soldered directly to the PCB - Removable can be used with PCB Sockets designed for Ø1mm sockets.

Click here for more information or buy from Anglia Live.

Surface Mount Cable Clips

Typically cable management across a PCB utilizes plastic cable clips with either adhesive or snap-in bases. Harwin have developed a range of unique metal Cable Clips offering a low profile, space-saving alternative.

Surface Mount metal construction can be assembled to the PCB at the same time as the rest of the components - no additional operations required.
Smaller footprint than equivalent adhesive clips.
Very low profile - side entry for cables keeps them very flat to the PCB.
As the clip is metal, it can also be used to ground coax braids - just expose the braid to make direct contact with the clip.

Click here for more information or buy from Anglia Live.

Turned Terminals and Lugs

Harwin have a wide range of single terminal pins which can mate with the PCB sockets of the compatible size, turreted pins, slotted lugs and solder buckets.

Terminals are soldered to the PCB for electrical connection
The tail design also allows for swaging for added mechanical retention - Punch and Die tool sets also available for order.
Turreted lugs available in 1, 2 and 3 wirewrap level versions.

Click here for more information or buy from Anglia Live.

Metric Spacers, Pillars or Standoffs

Harwin produce a wide range of PCB Spacers, Pillars and Standoffs, known by any of these descriptions, the product type is still the same. The parts are available as threaded or clearance pillars and are designed to stack PCBâ€™s (board-to-board) or to elevate the board from the equipment case.

Metric thread sizes of M2.5, M3 and M4 - or clearance spacers suitable for M3 and M4.
Various styles of round or hexagonal body shape, wide range of body lengths, and Female/Female, Male/Female or Male/Male thread orientations.
Available in Brass (Nickel finish), Aluminium (passivate coating) or Plastic.
Selection of Plastic locking stand-offs, ideal for board-to-panel fixing.

Click here for more information or buy from Anglia Live.

Anglia are offering customers FREE samples of the PCB hardware components from Harwin, please fill in the form below to register for your FREE samples now.
