Analog Devices have introduced the LTC2971 series of 2-Channel ±60V Power System Managers (PSM), offering 4 different channel output options enabling them to cover a wide range of application needs. The 2-channel PSM utilises an I2C/SMBus/PMBus interface for easy integration, the devices feature accurate input current and energy measurement and are capable of managing ±60V supplies. The device monitors input current and input voltage, and calculates input power and energy.

Output Channel Device Options

The LTC2971 2-channel high voltage PSMs can be used to sequence, trim (servo), margin, supervise, manage faults, provide telemetry and log faults. The integrated DACs use a proprietary soft-connect algorithm to minimize supply disturbances.
The LTC2971 series also have onboard supervisory functions which include over and under voltage and temperature threshold limits for two power supply output channels and one input channel. The device has programmable fault responses which can disable the power supplies, configure retry, and trigger black box EEPROM storage of fault status and associated telemetry.

An internal 16-bit ADC on the device monitors two output voltages, two output currents, two external temperatures, input voltage and current, and die temperature. Input power, energy, and output power are also calculated.
The onboard programmable watchdog timer monitors microprocessor activity and resets if necessary whilst a single wire bus synchronizes power supplies across multiple ADI Power System Management (PSM) devices.

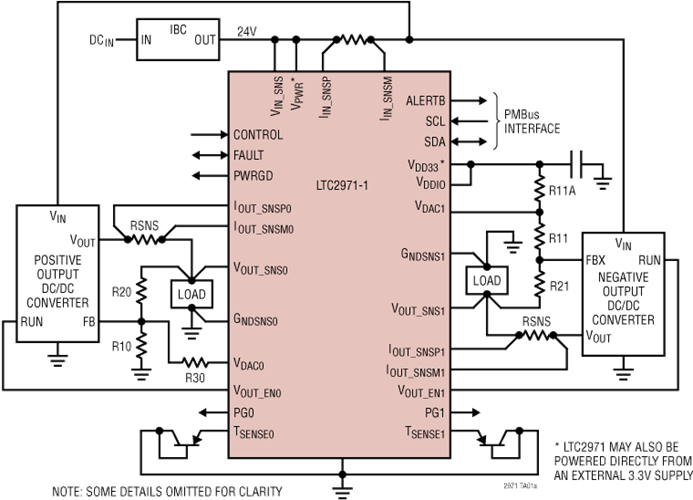

Application Circuit Example

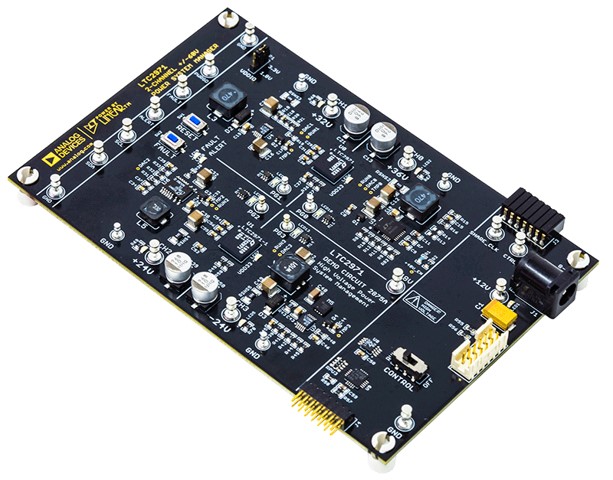

Support for developers is provided by the DC2875A demonstration system for the LTC2971 Power System Manager that interfaces to various regulators. The board contains all the circuitry needed to demonstrate a power system that utilizes two 2-channel LTC2971 devices that manage four power supplies. The four power supplies include various switching regulators for the purpose of demonstrating a variety of methods to sense voltage and current. The demo board provides a sophisticated 4-channel digitally programmable power supply system.

The DC2875A board contains four independent power supply rails. All four rails are based on DC/DC switching regulators. The +36V and +32V channels are managed by an LTC2971 and the ±24V channels are managed by an LTC2971-1. The board is pre-configured with these voltages and may be re-configured with feedback resistors.

Analog Devices LTpowerPlay® graphical user interface (GUI) supports this demonstration system and enables complete control of all the features of the LTC2971. Together, the LTpowerPlay software and DC2875A hardware system create a powerful development environment for designing and testing configuration settings of the LTC2971. LTpowerPlay stores these settings in the LTC2971 internal EEPROM or in a project file. The software displays all of the configuration settings and real time measurements from the Power System Management IC. Telemetry allows easy access and decoding of the fault log created by the LTC2971.

The board comes pre-programmed with the EEPROM values appropriate for the four power supply rails on the DC2875A. Just plug and play!

Key Features

• Sequence, Trim, Margin, Supervise, Manage and Log Faults, and Monitor Telemetry of Two Power Supplies
• Monitor Input Voltage from 0V to 60V, Input Current to Within 1%, and Accumulate Energy
• Manage Outputs from −60V to 60V and Margin or Trim to within 0.25%
• 1.8V to 3.3V PMBus/SMBus/I2C Compliant Serial Interface
• Supported by LTpowerPlay® GUI
• Coordinate Sequencing and Fault Management Across Multiple ADI PSM Devices
• Operate Autonomously Without Additional Software
• Connect Directly to Regulator IMON Pins
• Can Be Powered from 3.3V, or 4.5V to 60V
• Available in a 49-Pin 7mm × 7mm BGA Package

Click here for more information or to buy from Anglia Live.

Click here to download the LTC2971 series datasheet

Click here to download the DC2875A evaluation board user guide

Anglia are offering customers a FREE evaluation board for the LTC2971 series 2-Channel High Voltage Power System Manager from Analog Devices, please fill in the form below to register now.
